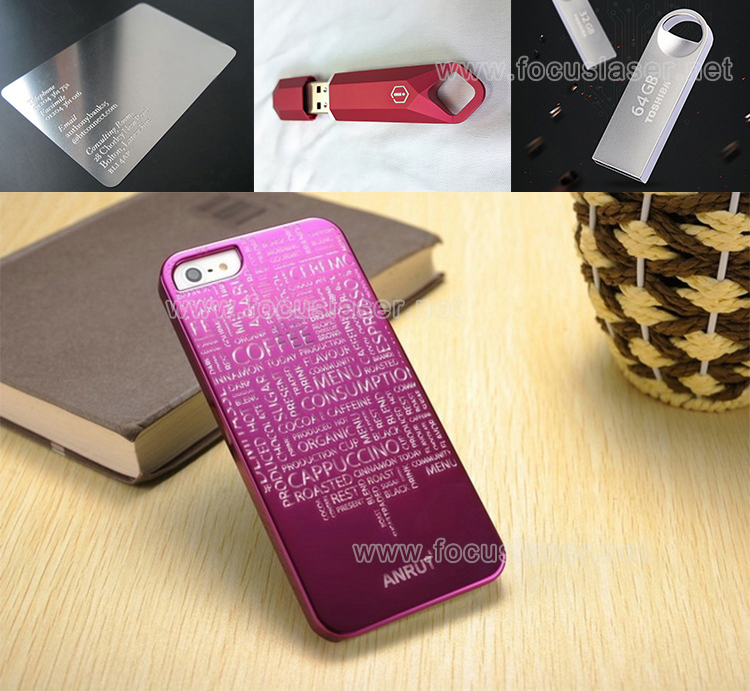

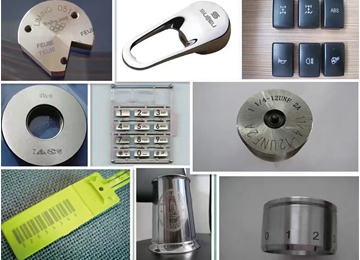

It widely used in industries of mobile phone keys, translucent plastic keys , electronic components , integrated circuit （IC）, electrical appliances , communication products , sanitary ware , tool parts,
knives , watches ,glasses, jewelry, auto accessories, luggage buckles, cooking utensils, stainless steel products.
|
Product Name |

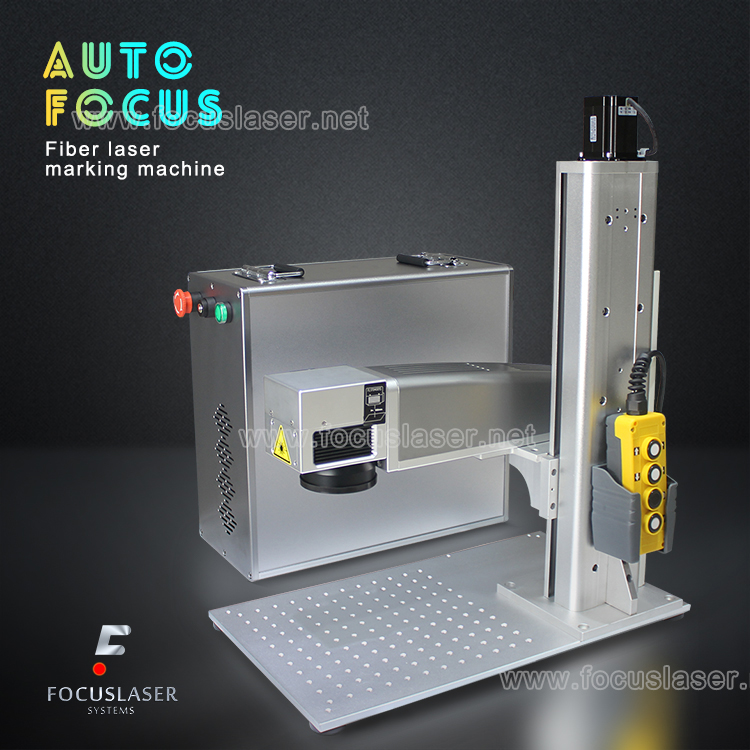

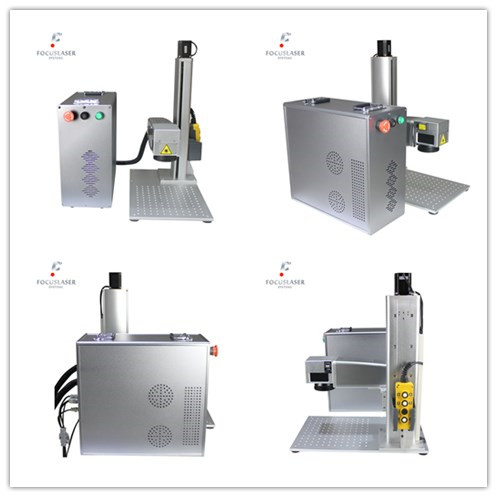

Auto Focus Fiber Laser Marking Machine |
|
Model |
FLFB20-DA |
|
Output Power |
20W |
|
Pulse Repetition Rate |
30-80KHZ |
|
Beam Quality ㎡ |
<1.2 |
|
Depth of Engraving（based on material） |
<0.3mm |
|
Gross Power |
600W |
|
Operating Voltage |
AC 110V/220V 50/60HZ 5A |
|
Laser Wavelength |
1064nm |
|
Engraving Range |
100×100mm |
|
Repetition Precision |
±0.003mm |
|
Engraving Speed |
≤8000mm/s |
|
Minimum Line Width |
0.01mm |
|
Character Size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Cable Length |
3m （5m optional） |
|
Working Temperature Range |
10-30℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of machine |
40kg |
